Electric Zumex Orange Juicer

Product Details

Place of Origin: China

Brand Name: Kingmax

Certification: CE

Model Number: XC-2000E-1

Payment & Shipping Terms

Minimum Order Quantity: 10

Price: Negotiate

Packaging Details: Inner carton box , outer wood box

Delivery Time: 15 days after receiving payment

Payment Terms: TT,L/C ,WEST UNION ,PAYPAL

Supply Ability: 1000 pcs one month

Get Best Price
Contact Now
Specifications
High Light:

fruit juicer machine

,

orange juice extractor

Material:
Food Grade 304 Stainelss Steel
Output:
22-25 Oranges Per Mins
Fruit Size:
40-90mm
Fruit Types:
Orange , Lemon , Pomegranate
Gross Weight:
51 Kg
Product Name:
Orange Juicer Machine
Material:
Food Grade 304 Stainelss Steel
Output:
22-25 Oranges Per Mins
Fruit Size:
40-90mm
Fruit Types:
Orange , Lemon , Pomegranate
Gross Weight:
51 Kg
Product Name:
Orange Juicer Machine
Description
Electric Zumex Orange Juicer

Industrial or Commercial Electric Zumex Orange Juicer Machine Full Automatic

Konmax Orange Juicer Description:

Material Stainless steel Delivery time 20FT: 10days; 40HQ: 15days
Width 300MM Length 400MM
Height 770MM Model XC-2000E-1
orange size 40--90mm Output 22-25 oranges/mins
Package size 410*310*780MM Certificate CE approval available
Electrics Standard 110V-220V,50-60HZ Power 120W
G.W 51KG N.W 45KG
40' HQ loading 290PCS FOB Shanghai USD
20' FT loading 120PCS Warranty 1 Year



Konmax Orange Juicer Application:

Commercial orange juicer can be used in wide range like bar,restaurant,drink shop , home ,supermarket,gymnasium,entertainment ,hospital etc



Konmax Orange Juicer Operation Steps:

1) Place the machine on the table after it is taken out of the box; Make sure that no parts is missing on the box.
2) Connect power plug to a power/socket, and turn on the power switch, run the machine without load.
This is to check that machine run normally and does not make any strange noise.
3) Then, check whether the waste bins and tray are place in the correct positions, Then turn off the machine.
4) Put the cup on the tray to get juice.
5) Put pre-washed oranges into the top basket before squeezing.
6) Turn on the switch, and let the machine run without load for a while. Then put oranges into feed rail,
and oranges will roll into concave roller, and cut into two half by knife assembly, and squeezed by convexroller.
Juice flowing down the cup.
7) To stop squeezing, turn off the power switch.

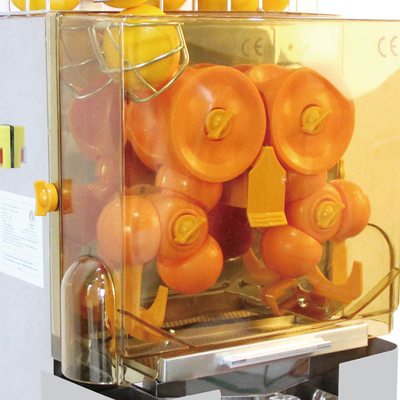

Konmax Orange Juicer Detailed Photo:
Electric Zumex Orange Juicer 0

Squeezing part

Concave convex extrusion, higher yield about 60%, more hygienic

Electric Zumex Orange Juicer 1

Stainless steel fruit basket can hold 10 kg oranges

Electric Zumex Orange Juicer 2

water drip tray makes it easy to clean and no juice flow outside
