Automatic Feed Orange Juicer Machine Bar Citrus Juice Extractor 120W

Automatic Feed Orange Juicer Machine Bar Citrus Juice Extractor 120W

Product Details:

Place of Origin: china
Brand Name: kingmax
Certification: CE
Model Number: XC-2000E-2

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Price: Negotiate
Packaging Details: Inner carton box , outer wood box
Delivery Time: 15 days after receiving payment
Payment Terms: TT,L/C ,WEST UNION ,PAYPAL
Supply Ability: 1000 pcs one month
Get Best Price Contact Now

Detail Information

Orange Size:: 40-75mm(Diameter) Yield:: 40%-50%
Blade Material:: Stainless Steel Conveyance:: Qty/20' FCL:120sets
High Light:

commercial juicer machines

,

fruit juicer machine

Product Description

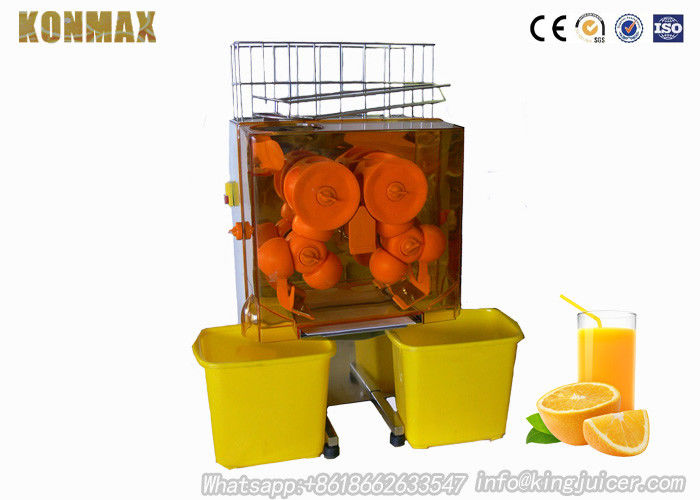

Automatic Feed Orange Juicer Machine Bar Citrus Juice Extractor 120W

Automatic Feed Orange Juicer Machine Bar Citrus Juice Extractor 120W
Konmax Orange Juicer Machine Description:
This juice extractor is specially designed for making fresh orange juice. The orange juice extractor adopts squeezing way which can realize an automatic process of skinning, extracting and filtering.
The produced juice has no seeds and no residue so that tastes very good.
1. The orange juice extracting machine has compact structure and delicate design.
2. Automatic feeding and juicing process, the extracting rate can be 40%.
3. The orange juice machine is made of stainless steel which is anti-corrosion and easy to clean and sanitary.
4. The whole juicing process can be finished in a very short time, the juice is originally nutrient and tasty


Konmax Orange Juicer Machine Specification:
1.Power supply:220--230V 50HZ /110--120V 60HZ
2.Power consumption:120W
3.Size of orange required:40--80mm
4.Output: 22-25 oranges/per minute
5.Machine Size: 400L*300W*770H mm(length*width*height)
6.Net Weight: 42kg
7.Security: Safety cut out switches
The machines will stop operating without the cover place.
8. ConVeyance: Qty/20' FCL: 120sets

Material Stainless steel Delivery time 20FT: 10days; 40HQ: 15days
Width 300MM Length 400MM
Height 770MM Model XC-2000E-2
orange size 40--80mm Output 22-25 oranges/mins
Package size 410*310*780MM Certificate CE approval available
Electrics Standard 110V-220V,50-60HZ Power 120W
G.W 48KG N.W 42KG
40' HQ loading 290PCS FOB Shanghai USD
20' FT loading 120PCS Warranty 1 Year
Function/Feature Safety cut out switches Touchpad Switch,
Internal circuit board. sensor ,counter






Konmax Orange Juicer Machine Detailed Photo:
 Automatic Feed Orange Juicer Machine Bar Citrus Juice Extractor 120W 0
Automatic Feed Orange Juicer Machine Bar Citrus Juice Extractor 120W 1

Automatic Feed Orange Juicer Machine Bar Citrus Juice Extractor 120W 2
Konmax Orange Juicer Machine Accessory:
A pair of peeling implement(two),one of 5A fuze,one of cross implement, one of 8-10mm spanner,one of  electronic supply.


Konmax Orange Juicer Machine Operation Steps:
Connect the power plug to grounded electrical outlet and put the juice machine on a stable table (make sure electric pressure is above 10 AMP ).Turn on the power switch .The machine is ready .Wash and cut the fruit and vegetables ,put them into the feed-in mouth .Use pushing stick to push then into the machine .The juice will flow out and residue will spurt from residue outlet .
1.Make sure the power pressure is 110v/60hz or 220v/50hz .Electrical outlet needs to be above 10AMP and have grounded power .
2..Put 2 pcs peg in the net and blade of the machine , screw the nut and close the cover .
3.This machine is not workable for the fruit with hard core or less moisture , such as peanut and banana .
4..Use the enclosed feed stick but not other stick to avoid damage the machine .
5. Keep the residue outlet un-blocked .
6..Do not clean the outside of the machine by water directly to avoid electricity leakage or other accident .
7.Turn off the power and pull out plug before washing the machine


Konmax Orange Juicer Machine Cleaning Instruction:
 1.Wrench screws of the front cover and take off the cover .
2.Take off the holder of the peel razor
3.Wrench screws on the ball.Hold the machine with both hands,and use two fingers to take off the plastic
balls .Do not use one hand only because this may cause injury.Since the spinning angels of axles are  different.sometimes you need to take off(or put on)the two corresponding top and bottom Ball at the same time .
4.take off the center of the valve of the juicer tank.
5.Take off the mesh filter
6.Clean the all parts mentioned in the instruction book .
7.Clean the garbage can in times .

Konmax Orange Juicer Machine Youtube Link Please check :

Automatic Feed Orange Juicer Machine Bar Citrus Juice Extractor 120W 3
