10L 2 Tanks Cold Drink Dispenser Juice Making Machine

Product Details

Place of Origin: China

Brand Name: kingmax

Certification: CE

Model Number: LRSDP-10lx2

Payment & Shipping Terms

Minimum Order Quantity: 10

Price: Negotiate

Packaging Details: Inner carton box ,outer wooden box

Delivery Time: 15 days after receiving payment

Payment Terms: TT,L/C, WEST UNION ,PAYPAL

Supply Ability: 2000PCS ONE MONTH

Get Best Price

Contact Now

Specifications

Description

Specifications

High Light:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    2 Tank Cold Drink Dispenser, 10L Juice Making Machine, Juice Drink Dispenser machine


Material:	Plastic +stainless Steel	Processing Types:	Any Of Liquid Drinks
Voltage::	220-240V/110-115V	Function::	Cool And Hot
Temperature::	7-12°C & 52-58°C	Low Noise::	YES
Compressor:	Cubigel	Working Mode:	Mix (stirring)

Material:	Plastic +stainless Steel
Processing Types:	Any Of Liquid Drinks
Voltage::	220-240V/110-115V
Function::	Cool And Hot
Temperature::	7-12°C & 52-58°C
Low Noise::	YES
Compressor:	Cubigel
Working Mode:	Mix (stirring)

Description

10L 2 Tanks Cold Drink Dispenser Juice Making Machine

Konmax Cold Drink Dispenser Description:

1.All the parts using in cold drink dispenser are environment friendly
2.High quality compressor lead to cooling & heating fast and stable( cooling & heating during 25—45mins)
3.juicer dispenser machine with stainless iron panel complete mirror design
4.All the part inside cold-hot juice machine welding by copper tube , in order to Avoid rust
5.cold drink machine divided into cool & hot , cooling only ,
6.mixing and Spraying design
7.One , two and three tank to choose
8.The tank is made of PC (Polycarbonate) material which is high/low temperature resistance, unbreakable, innoxiously, antifoaming, good flexibility and removable.
10.Cold drink machine is low noise ,cooling fast.

Konmax Cold Drink Dispenser Application:

Widely used in hotels, coffee hall, enterprises and institutions and individual cold drink shops.
Drink Dispenser with tap can produce cold drinks.
Mixing power is huge, can mix soya-bean milk, yogurt and bring the enrichment of the pulp drinks.
Classic bubbler style, vertical spray dispenser with magnetic driven agitators.
The piston discharging valve, larger particles are not easy to jam.
Superior engineering allows full beverage cooling right down to the last drink.
Stainless steel, dripless pouring valves are sanitary and easy to use and maintain.
Better design and more stainless steel allow easier cleaning and less maintenance.
Humanized handle, easy to use, comfortable and covenient.

Konmax Cold Drink Dispenser Specification:

Material	Stainless steel R304	Machine size	330450670MM
power	280/800W	Packing size	370460700MM
Cold-beverage temperture	7 to 12 degree	Hot-beverage temperature	52 to 58 degree
Tank material	PC	Model	LSJ 10L X2
Condenser	with Copper tube	Certificate	CE
switch	LCD switch	Packing Way	Carton +foam inside
Electrics Standard	110V-220V,50-60HZ	Drive Mode	Magnetic rotating
G.W	24KG	N.W	22KG
40' HQ loading	530PCS	FOB Shanghai	USD
20' FT loading	210PCS	Warranty	1 Year

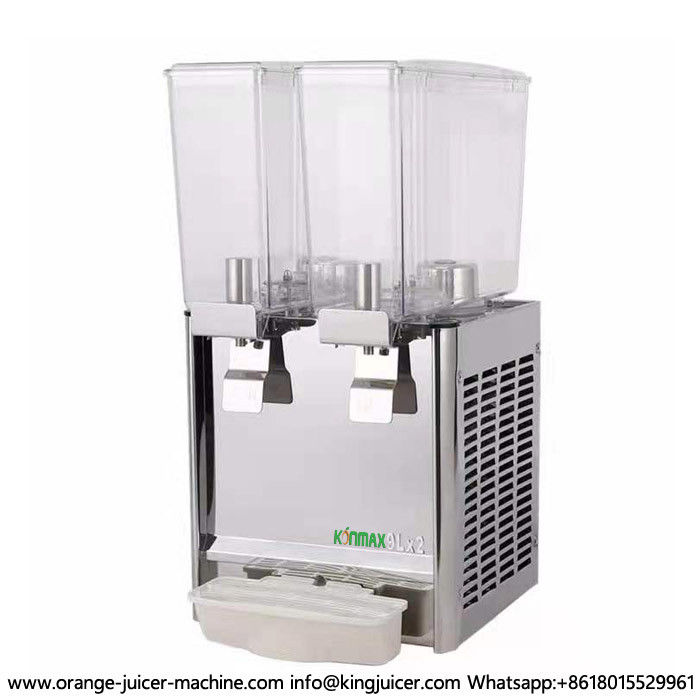

Konmax Cold Drink Dispenser Detailed Photo:

10L 2 Tanks Cold Drink Dispenser Juice Making Machine 0

10L 2 Tanks Cold Drink Dispenser Juice Making Machine 1

10L 2 Tanks Cold Drink Dispenser Juice Making Machine 2

How to use the cold beverage machine
1.To fall prepared beverage into the crock , the height of it is should not exceed the standard height (9L-12L-18L-20L-50L), otherwise the beverage will flow into the churn-dasher from the dasher tube,which will make the dasher burn .
2.The temperature of the beverage should not too high (not exceed 35), otherwise it will make bad effection for the refrigeration .
3.Plug in the supply power to the 3 hole socket , the grounding hold should connect with the protecable wire or fixture to ensure the safety .
4.To turn the switch on the position of refrigeration , press down the refrigeration switch , the compressor fan starts running and refrigeration system starts working .
Then start the dasher to mix or start the spewing swtich to spew.
5.When the beverage becomes to the suitable temperature , please make the cup against the push board lightly .the beverage will flow into the outlet mouth .
6.when the temperture reduces to the certain degree , the refrigeration will stop running because of the influence from the temperature cotroller .And when it increases, it will start automatically again .
7.It should re-start after 5 minuters if it turn off suddenly or stop temporarily .otherwise it will damage the compressor .

Konmax Cold Drink Dispenser Youtube Operation Link :
