Product Details
Place of Origin: China
Brand Name: Konmax
Certification: CE
Model Number: KX-S46
Payment & Shipping Terms
Minimum Order Quantity: 5 PCS
Price: USD1000-USD3500
Packaging Details: WOODEN CASE
Delivery Time: 10-15 DAYS AFTER PAYMENT
Supply Ability: 1000PCS ONE MONTH
Product Name: |
Ice Cream Machine |
Power: |
3200 Watts |
Auto Cleaning: |
Yes |
Compressor: |
France Tecumseh 1.5HP |
Motor: |
Japan Mitsubishi |
Hourly Production:: |
50 Liter |
Product Name: |
Ice Cream Machine |
Power: |
3200 Watts |
Auto Cleaning: |
Yes |
Compressor: |
France Tecumseh 1.5HP |
Motor: |
Japan Mitsubishi |
Hourly Production:: |
50 Liter |
Konmax Ice Cream Machine Decsription :
According to the machine shape, it is divided into: vertical ice cream machine, desktop ice cream machine;
According to the number of outlets, it is divided into: single-head ice cream machine, double-head ice cream machine, three-head ice cream machine, and multi-head ice cream machine;
According to the type of ice cream is divided into: soft ice cream machine, hard ice cream machine.
The working principle of ice cream machine
First, the raw materials are added to the raw material tank, and then the raw materials are evenly mixed with air under the action of the air slurry pump and transported to the freezing cylinder. The puffed milk slurry is stirred in the freezing cylinder and gradually cooled down while the viscosity increases. When the required viscosity is reached, it is pushed to the outlet under the action of the screw conveyor. When the outlet is opened, the machine squeezes out the finished ice cream.
Konmax Ice Cream Machine Specification:
Type | Floor standing |
Flavour | 2+1mixed |
Cylinder Capacity | 5L (2.5 Liter x 2) |
Hopper Capacity | 20L (10 Liter x 2) |
Hourly Production | 46-50L/H (460~500cups) |
Mix Delivery System | Patent magnet air pump |
Cooling System | Air-cooled (water-cooled optional) |
Nominal Power | 3200W |
Voltage | 220V/380V, 50H/60H, 1Ph/3Ph |
Net Weight | 185KG |
Gross Weight | 205KG |
Dims.(W*D*H) | 54*72*145cm |
Refrigerant | R404a |
Compressor | France Tecumseh 1.5HP |
Expand valve | Danfoss |
Motor | Japan Mitsubishi |
Beater | Stainless steel beater |

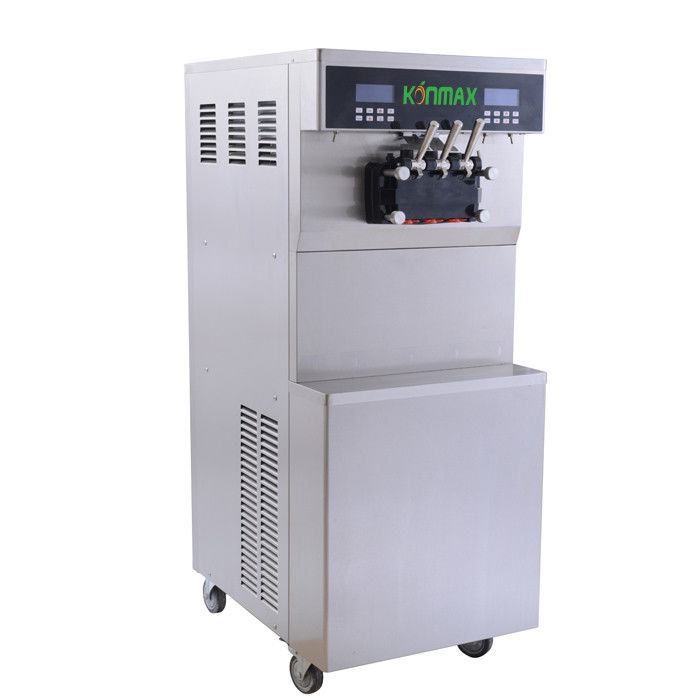

Detailed Photo:
You can choose LCD button panel and touch screen panel
