Commercial Orange Juicer Extractor

Product Details

Place of Origin: China

Brand Name: Kingmax

Certification: CE

Model Number: XC-2000E-4

Payment & Shipping Terms

Minimum Order Quantity: 10 PCS

Price: Negotiate

Packaging Details: One piece packed in carton box

Delivery Time: 15 Days after payment


Supply Ability: 2000 PCS one month

Get Best Price
Contact Now
High Light:

Orange Juice Squeezer Machine


stainless steel orange squeezer

Fruit Type:
Orange , Lemon , Pomegranate
Fruit Size:
Main Body Material:
304 Stainless Steel
Satety Cut Out Switches
22-25 Oranges Per Mins
110-220V ,50-60 HZ
Fruit Type:
Orange , Lemon , Pomegranate
Fruit Size:
Main Body Material:
304 Stainless Steel
Satety Cut Out Switches
22-25 Oranges Per Mins
110-220V ,50-60 HZ

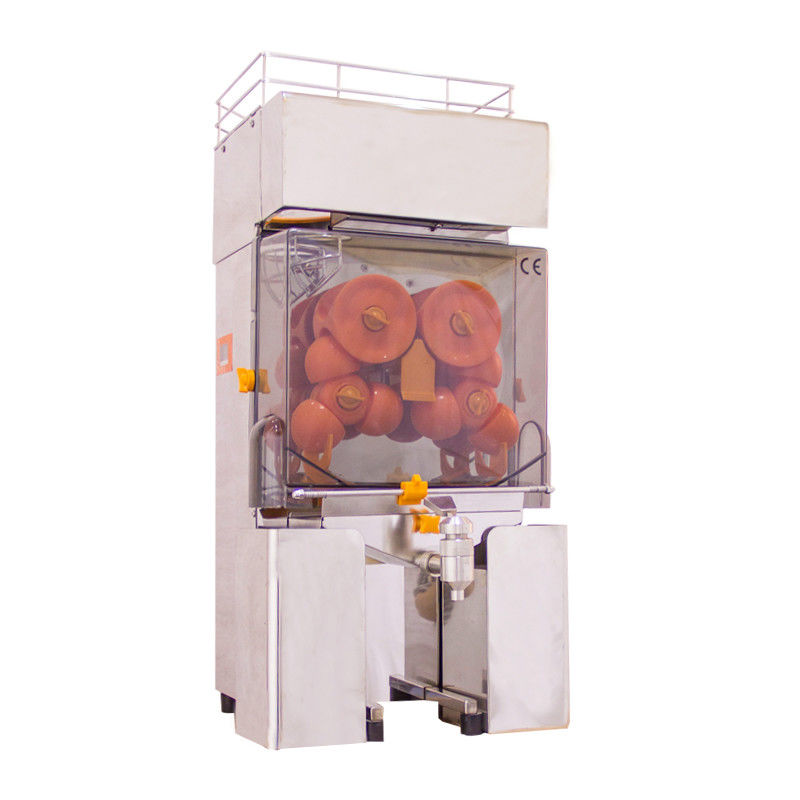

Commercial Orange Juicer Extractor

Commercial Orange Juicer Extractor , Light Weight Lemon Squeezer


The Juicer machine would make extracting juice from oranges. It design Reasonably, both exterior and interior structure are advanced. Made of the highest quality of stainless steel, our juicer is made for the commercial business environment. Characteristics of the machine are: no antiseptic, coloring matter, essence & water in the fresh juice. It is totally different with another juice in the market. Use these kinds of machine you just need to antisepsis and wash fresh oranges, the machine will peel the skin, producing fresh juices, filtrate automatically. This product is well-designed and advanced, all the material are safety by stainless steel and PC plastic.
The machine apply to small drink shops, fruit shop, restaurants, hotels, bars, the office of cards, tea and coffee-houses, a very wide range of applications. Also applies to the success of the family. With the concept of raising the level of food consumption, as people of freshly squeezed juice will replace the carbonated beverage drinks.


The machine apply to small drink shops, fruit shop, restaurants, hotels, bars, the Office of cards, tea - and

coffee-houses, a very wide range of applications.


Material Stainless steel Delivery time 20FT: 10days; 40HC: 15days
Width 440MM Length 480MM
Height 880MM Model XC-2000E-4
orange size 40--90mm Output 22-25 oranges/mins
Package size 490*450*890MM Certificate CE approval available
Electrics Standard 110V-220V,50-60HZ Power 120W/250W
G.W 62KG N.W 56KG
40' HQ loading 210PCS FOB Shanghai USD
20' FT loading 88PCS Warranty 1 Year


Two protruding balls ,blade compages ,concave squeezer ,peelers ,peeler seats ,plastic veils ,pressing

screw , two concave balls .

Operation Instruction:

1.  Place the machine on the stable table, connect power plug to a grounded connector plug.

2.  Safety check before you turn on the machine:

     1) If the nut (4 units) screw down properly.

     2) If place the knife rest correctly (press it on the bottom).

     3) Place the cover on, screw down two side nut (2 units).

3. It can be used after turn on the power.

4.Put antisepsis and washed fresh oranges (40-80mm) in, the machine will peel the skin, producing fresh juices, filtrate automatically

Cleaning Instruction:

1.Wrench screws of the  front cover and take off the cover .

2.Take off the holder of the peel razor

3.Wrench screws on the ball.Hold the machine with both hands,and use two fingers to take off the plastic

balls .Do not use one hand only because this may cause injury.Since the spinning angels of axles are

different.sometimes you need to take off(or put on)the two corresponding top and bottom ball at the same time .

4.take off the center of the valve of the juicer tank.

5.Take off the mesh filter

6.Clean the all parts mentioned in the instruction book .

7.Clean the garbage can in times .

Safety Notice:

Avoid dangerous please followed by the next step:
1. Ensure read and understand all the explanations.
2. Only use the specifically marked AC power source(230V/50HZ, 120V/60HZ).
3. For the safety purpose, only use connect power to the grounded connector plugs.
4. Ensure machine is disconnected from main power and turn off the power before you clean it.
5. Do not touch the power connect plug.
6. Only used for citrus and lemon. Do not used for other fruit.
7. Do not use for peach, mango etc, in case it damage.
8. Do not put your hands in the machine while it working.
Detailed Photo:
Commercial Orange Juicer Extractor 0
Commercial Orange Juicer Extractor 1Commercial Orange Juicer Extractor 2
