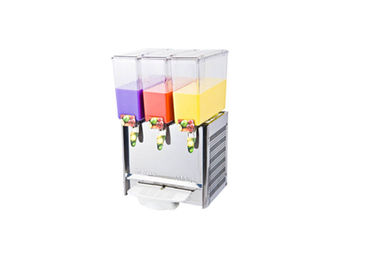

1000W Cold Drink Dispenser

Product Details

Place of Origin: China

Brand Name: kingmax

Certification: CE

Model Number: LRSJ-9LX3

Payment & Shipping Terms

Minimum Order Quantity: 10

Price: Negotiate

Packaging Details: Inner carton box ,outer wooden box

Delivery Time: 15 days after receiving payment


Supply Ability: 2000PCS ONE MONTH

Get Best Price
Contact Now

commercial cold beverage dispenser


refrigerated drink dispenser

Plastic +stainless Steel
Product Name:
Cold Drink Dispenser
Shape Size:
Carton Packing:
Gross Weight:
Plastic +stainless Steel
Product Name:
Cold Drink Dispenser
Shape Size:
Carton Packing:
Gross Weight:
1000W Cold Drink Dispenser

9LX3 1000W Cold Drink Dispenser With Handle For Making Milk , 220V

Konmax Cold Drink Dispenser Description:

1.The machine can make hot and cold milk, fruit juice and other hot and cold drinks, easy to use, clean

and it is an ideal equipment for the catering industry.
2.This machine adopts stainless steel evaporator, heat transfer effect is good or cool down fast.

3.This  machine has small size, light weight, low power consumption, easy operation and so on.
4.Food-grade high-density crack PC capacity tank, safe, easy to clean
5.Split out the material switches to ensure that pollution-free frozen drinks.
6.Humanized design, computer control panel, 304 # stainless steel shell, beautiful and durable
7.Spray-type design, application and strong bond, particle big drinks, such as soy milk, pearl milk tea and so on.
8.Power, voltage, frequency is up to the customer's requirements.
9.Wrap-around stainless steel evaporator, cooling the strong rapid temperature equilibrium.
10.Closed-end high back pressure compressors, energy-saving quiet, noise less than 55db
11.Using R134A refrigerant, anaerobic environment

Material Stainless steel R304 Machine size 410*450*670MM
power 320/1000W Packing size 490*460*700MM
Cold-beverage temperture 7 to 12 degree Hot-beverage temperature 52 to 58 degree
Tank material PC Model LSJ 10 LX3
Condenser with Copper tube Certificate CE
switch LCD switch Packing Way Carton +foam inside
Electrics Standard 110V-220V,50-60HZ Drive Mode Magnetic rotating
G.W 30KG N.W 27KG
40' HQ loading 490PCS FOB Shanghai USD
20' FT loading 190PCS Warranty 1 Year



Konmax Cold Drink Dispenser  Application:

Hotel use ,restaurant,store , supermarket


Konmax Cold Drink Dispenser  Specification:

Voltage 220-240V/110-115V
Frequency 50/60/HZ
Cold power 385W
Heat power 1000W
Cold-beverage temperture 7-12℃
Hot-beverage temprture 52-58℃
Shape size 460×430×690
Carton Packing 480×450×700
Weight 30 KG
Gross weight 32 KG


Konmax Cold Drink Dispenser  How to use ?
1.To fall prepared beverage into the crock , the height of it is should not exceed the standard height (9L-12L-18L-20L-50L), otherwise the beverage will flow into the churn-dasher from the dasher tube,which will make the dasher burn .
2.The temperature of the beverage should not too high (not exceed 35), otherwise it will make bad effection for the refrigeration .
3.Plug in the supply power to the 3 hole socket , the grounding hold should connect with the protecable wire or fixture to ensure the safety .
4.To turn the switch on the position of refrigeration , press down the refrigeration switch , the compressor fan starts running and refrigeration system starts working .
Then start the dasher to mix or start the spewing swtich to spew.
5.When the beverage becomes to the suitable temperature , please make the cup against the push board lightly .the beverage will flow into the  outlet mouth .
6.when the temperture reduces to the certain degree , the refrigeration will stop running because of the influence from the temperature cotroller .And when it increases, it will start automatically again .
7.It should re-start after 5 minuters if it turn off suddenly or stop temporarily .otherwise it will damage the compressor .


Konmax Cold Drink Dispenser Detailed Photos:

1000W Cold Drink Dispenser 0

Food grade PC tank

1000W Cold Drink Dispenser 1

Juice handle

1000W Cold Drink Dispenser 2

Large drip tray to prevent water or juice out


Konmax Cold Drink Dispenser  Fair show:

1000W Cold Drink Dispenser 3


Konmax Cold Drink Dispenser  E-catalogue:

1000W Cold Drink Dispenser 4


1000W Cold Drink Dispenser 5
