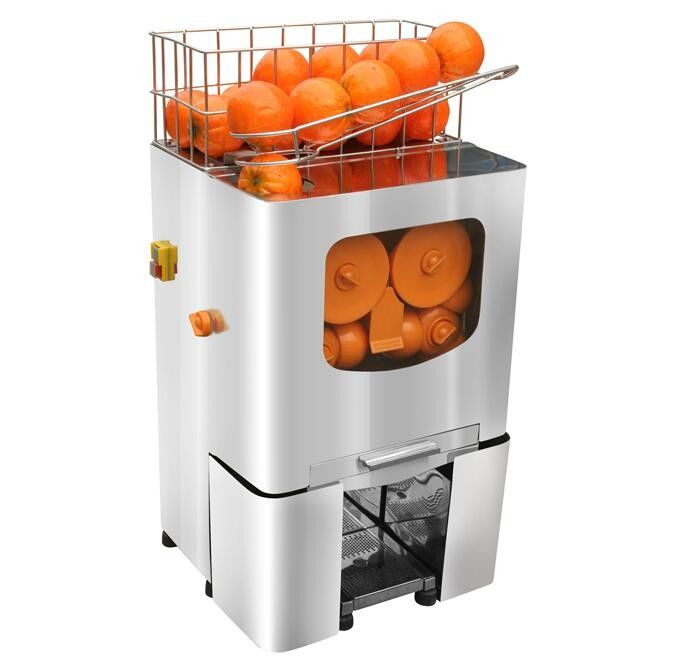

Auto Commercial Orange Juicer Machine / Orange Juicing Machines High efficiency

Product Details

Place of Origin: china

Brand Name: kingmax

Certification: CE

Model Number: XC-2000E-3

Payment & Shipping Terms

Minimum Order Quantity: 10 PCS

Price: Negotiate

Packaging Details: Inner carton box , outer wood box

Delivery Time: 15 days after receiving payment

Payment Terms: TT,L/C ,WEST UNION ,PAYPAL

Supply Ability: 1000 pcs one month

Get Best Price
Contact Now
Specifications
High Light:

orange juice maker machine

,

commercial citrus juicer

Material:
Anti-rust 304 Stainless Steel
Orange Size:
40-90MM
Working Mode:
Automatic Cutting And Peeling Off
Yield:
40%-50%
Face Mask Material:
Stainless Steel
Gross Weight:
52kg
Material:
Anti-rust 304 Stainless Steel
Orange Size:
40-90MM
Working Mode:
Automatic Cutting And Peeling Off
Yield:
40%-50%
Face Mask Material:
Stainless Steel
Gross Weight:
52kg
Description
Auto Commercial Orange Juicer Machine / Orange Juicing Machines High efficiency

Auto Commercial Orange Juicer Machine / Orange Juicing Machines High efficiency

Konmax Orange Juicer Machine  Specification:
1.Power supply:220--230V 50HZ /110--120V 60HZ
2.Power consumption:120W
3.Size of orange required:40--90mm
4.Output: 22-25 oranges/per minute
5.Machine Size: 420L*350W*770H mm(length*width*height)
6.Net Weight: 46kg
7.Security:Safety cut out switches
The machines will stop operating without the cover place.
8. ConVeyance:Qty/20' FCL: 120sets

Material Stainless steel  Delivery time 20FT: 10days; 40HQ: 15days
Width 350MM Length 420MM
Height 770MM Model XC-2000E-3
orange size 40--90mm Output 22-25 oranges/mins
Package size 430*360*780MM Certificate CE approval available
Electrics Standard 110V-220V,50-60HZ Power 120W
G.W 52KG N.W 46KG
40' HQ loading 290PCS FOB Shanghai USD
20' FT  loading 120PCS Warranty 1 Year



Konmax Orange Juicer Machine  Detailed Photo:

Auto Commercial Orange Juicer Machine / Orange Juicing Machines High efficiency 0

Top stainless steel fruit basket can hold 10 kg oranges at one time .

Auto Commercial Orange Juicer Machine / Orange Juicing Machines High efficiency 1

Cross system is optional

Auto Commercial Orange Juicer Machine / Orange Juicing Machines High efficiency 2

Considerate details :stainless steel auto control tap , slide filter to separate juice and residue .



Konmax Orange Juicer Machine  Accessory:
A pair of peeling implement(two),one of 5A fuze,one of cross implement, one of 8-10mm spanner,one of electronic supply.



Konmax Orange Juicer Machine  Safety Notice:
Avoid dangerous please followed by the next step:
1. Ensure read and understand all the explanations.
2. Only use the specifically marked AC power source(230V/50HZ,120V/60HZ).
3. For the safety purpose,only use connect power to the grounded connector plugs.
4. Ensure machine is disconnected from main power and turn off the power before you clean it.
5. Do not touch the power connect plug.
6. Only used for citrus and lemon. Do not used for other fruit.
7. Do not use for peach, mango etc, in case it damage.
8. Do not put your hands in the machine while it working.



Konmax Orange Juicer Machine  Application Photo:

Auto Commercial Orange Juicer Machine / Orange Juicing Machines High efficiency 3

Konmax Orange Juicer Machine  Cleaning Instruction:
1.Begin by unplugging the juicer.
2.Disassemble the juicer completely.
3.Dump the bin or container that catches the pulp and scrape it out with a spatula.
4.Rinse each piece under running water.
5.Use the small brushes to clean the small areas, there are small brushes available such as nail brushes
 that can be used to clean the nooks and crannies
6.For more thorough cleanings, fill the sink with water and add dish soap.
7.Soak each piece for a few minutes and then wash with a brush or soft cloth.
8.Pay special attention to the mesh strainer as this can quickly build up with pulp and juice debris. Do not
 allow the juice particles to dry in this fine screen or they will be difficult to remove.
9.Use a soft cloth or sponge moistened with water to wipe down the machine itself. Although the juice is

designed to go through a certain route in the juicer, juice and pulp will end up everywhere.
10.Allow all of the pieces to dry completely. It is fine to set them on a towel or drying rack.
11.Reassemble the juicer.



Konmax Orange Juicer Machine  Youtube Link Please check :

Auto Commercial Orange Juicer Machine / Orange Juicing Machines High efficiency 4
