Product Details
Place of Origin: china
Brand Name: kingmax
Certification: CE
Model Number: XC-2000E-4
Payment & Shipping Terms
Minimum Order Quantity: 10 PCS
Price: Negotiate
Packaging Details: Inner carton box , outer wood box
Delivery Time: 15 days after receiving payment
Payment Terms: TT,L/C ,WEST UNION ,PAYPAL
Supply Ability: 1000 pcs one month
Capacity: |
22-25 Oranges Per Min |
Orange Size:: |
40-75mm(Diameter) |
Yield: |
40%-50% |
Gross Weight: |
62kg |
Working Mode: |
Automatic Cutting And Peeling Off |
Switches:: |
Safety Cut Out Switches |
Qty/20' FCL:: |
85pcs |
FOB Port:: |
Shanghai,China |
Capacity: |
22-25 Oranges Per Min |
Orange Size:: |
40-75mm(Diameter) |
Yield: |
40%-50% |
Gross Weight: |
62kg |
Working Mode: |
Automatic Cutting And Peeling Off |
Switches:: |
Safety Cut Out Switches |
Qty/20' FCL:: |
85pcs |
FOB Port:: |
Shanghai,China |
Automatic Electric Commercial Orange Juicer Machine 370W High Power
Konmax Orange Juicer Machine Description:
This juice extractor is specially designed for making fresh orange juice. The orange juice extractor adopts squeezing way which can realize an automatic process of skinning, extracting and filtering.The produced juice has no seeds and no residue so that tastes very good.
1. The orange juice extracting machine has compact structure and delicate design.
2. Automatic feeding and juicing process, the extracting rate can be 40%.
3. The orange juice machine is made of stainless steel which is anti-corrosion and easy to clean and sanitary.
4. The whole juicing process can be finished in a very short time, the juice is originally nutrient and tasty.
Konmax Orange Juicer Machine Application:
The commercial orange juicer machine apply to small drink shops, fruit shop, restaurants, hotels, bars, the Office of cards, tea - and coffee-houses, a very wide range of applications.
Konmax Orange Juicer Machine Specification:
Material | Stainless steel | Delivery time | 20FT: 10days; 40HC: 15days |
Width | 440MM | Length | 480MM |
Height | 880MM | Model | XC-2000E-4 |
orange size | 40--90mm | Output | 22-25 oranges/mins |
Package size | 490*450*890MM | Certificate | CE approval available |
Electrics Standard | 110V-220V,50-60HZ | Power | 120W/250W |
G.W | 62KG | N.W | 56KG |
40' HQ loading | 210PCS | FOB Shanghai | USD |
20' FT loading | 88PCS | Warranty | 1 Year |

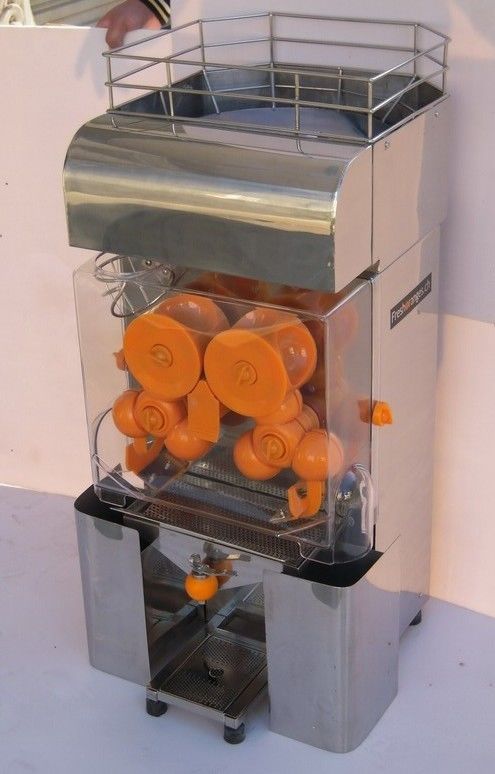

Konmax Orange Juicer Machine Detailed Photo:
Konmax Orange Juicer Machine Accessory:
Two protruding balls ,blade compages ,concave squeezer ,peelers ,peeler seats ,plastic veils ,pressing screw , two concave balls .
Konmax Orange Juicer Machine Operation Instruction:
1. Place the machine on the stable table, connect power plug to a grounded connector plug.
2. Safety check before you turn on the machine:
1) If the nut (4 units) screw down properly.
2) If place the knife rest correctly (press it on the bottom).
3) Place the cover on, screw down two side nut (2 units).
3. It can be used after turn on the power.
4. Put antisepsis and washed fresh oranges (40-80mm) in, the machine will peel the skin, producing fresh juices, filtrate automatically.
Orange juicer machine production procedure :
1) Laser cutting : we use our laser cutting machine to cut the 3mm thickness stainless steel 304 into different size due to different model
2)Punching : we use punching machin to make punching on the stainless steel , the punching position is fixed and measured by machine .
3)Bending :because the orange juicer machine require different angles , so we need bend the stainess to meet the demand .
4)Moulding : we use injection moulding machine to make the spare parts like protruding ball , concave squeezer ,peeler etc .
5)Welding : weld internal parts like motor case etc .
6)Assembling :assemble the parts together .
7)Testing :all machine before exporting we need test 2 days , using oranges squeezing and see how it is working.
8)Washing :before packing we need washing the machine clearly and make it clean .
9)Packing :usually we put foam inside the carton and seal the carton outside , if you need wooden packing we can meet you demand .
Konmax Orange Juicer Machine E-catalogue:
