Commercial 2 Tanks Cold Drink Juice Beverage Dispenser with Jet Spray Refrigerate
|Place of Origin:||China|
Payment & Shipping Terms:
|Minimum Order Quantity:||10|
|Packaging Details:||Inner carton box ,outer wooden box|
|Delivery Time:||15 days after receiving payment|
|Payment Terms:||TT,L/C, WEST UNION ,PAYPAL|
|Supply Ability:||2000PCS ONE MONTH|
|Material:||Plastic +stainless Steel||Processing Types:||Any Of Liquid Drinks|
|Voltage::||220-240V/110-115V||Function::||Cool And Hot|
|Temperature::||7-12°C & 52-58°C||Low Noise::||YES|
|Tank Material:||Food Grade PC||Gross Weight:||27KG|
cold drink dispenser machine,
commercial cold beverage dispenser
Konmax Cold Drink Dispenser Description:
Hotel ,restaurant,store , supermarket,drink bar etc

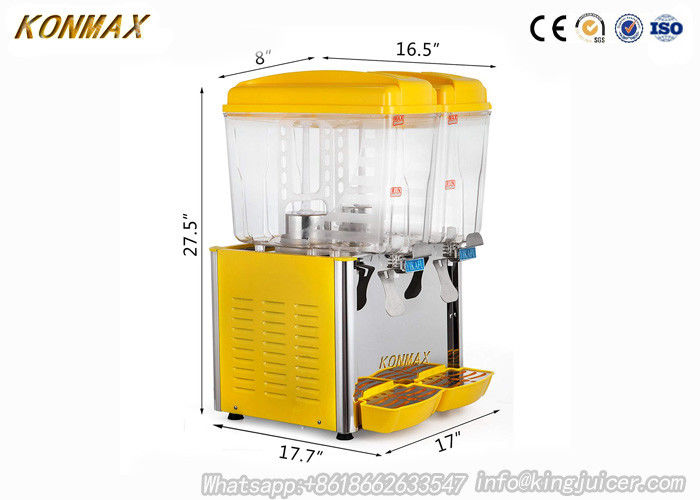

Konmax Cold Drink Dispenser Specification:
|Material||Stainless steel R304||Machine size||480*460*740MM|
|Cold-beverage temperture||7 to 12 degree||Hot-beverage temperature||52 to 58 degree|
|Tank material||PC||Model||LSJ 18 LX2|
|Condenser||with Copper tube||Certificate||CE|
|switch||LCD switch||Packing Way||Carton +foam inside|
|Electrics Standard||110V-220V,50-60HZ||Drive Mode||Magnetic rotating|
|40' HQ loading||425PCS||FOB Shanghai||USD|
|20' FT loading||165PCS||Warranty||1 Year|
Konmax Cold Drink Dispenser Detailed Photo:
Food Grade PC tank to hold the liquid and it is safe to drink
You can choose mixing or spraying function
Temperature you can choose hot , cold , cold& hot function
Water drip tray to prevent the juice outside and easy to clean
Konmax Cold Drink Dispenser Installing Methods:
1: To install it ,pls choose the site which is flat,fixable and can avoid the direct sunshine in sunmmer.
2:Around the juicer, should have 150mm up room to make the air circulating and make sure the machine can run effectively.
3:Before installing, pls check the supply whether confirm the requirements or not. The power supply cable is not too thin or too long. The cross section of cable should be 1.5-2.5mm, Voltage is mounted on the fixed position with fuse which will keep the users safety,it must have reriable grounding. The socket should be mounted on the fixed position with fuse which keep the machine running safety.
4;To make the fix position for juicer,should make its frond lower and back higher(to ajust the foot of bottom can do it), then the water in the salver can flow into the box through the hose.
Konmax Cold Drink Dispenser How to use ?
1. To fall prepared beverage into the crock , the height of it is should not exceed the standard height (9L-12L-18L-20L-50L), otherwise the beverage will flow into the churn-dasher from the dasher tube,which will make the dasher burn .
2. The temperature of the beverage should not too high (not exceed 35), otherwise it will make bad effection for the refrigeration .
3. Plug in the supply power to the 3 hole socket , the grounding hold should connect with the protecable wire or fixture to ensure the safety .
4. To turn the switch on the position of refrigeration , press down the refrigeration switch , the compressor fan starts running and refrigeration system starts working . Then start the dasher to mix or start the spewing swtich to spew.
5.When the beverage becomes to the suitable temperature , please make the cup against the push board lightly .the beverage will flow into the outlet mouth .
6.when the temperture reduces to the certain degree , the refrigeration will stop running because of the influence from the temperature cotroller .And when it increases, it will start automatically again .
7.It should re-start after 5 minuters if it turn off suddenly or stop temporarily .otherwise it will damage the compressor .
