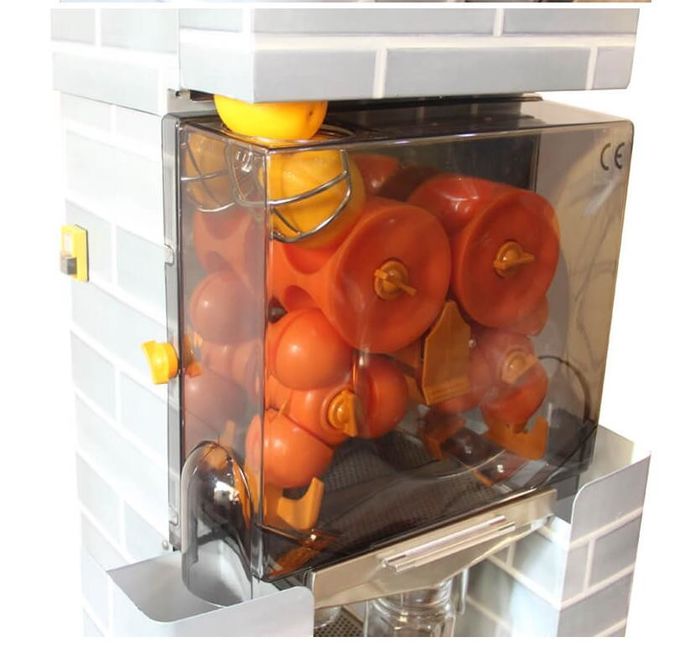

Pomegranate juice extractor machine , Automatic Orange Juicer XC-2000E-4B
This orange juicer adopt squeeze style, orange after disinfection, rinsing, direct access to this machine, automatic peeling, juicing, filtering,
are now pressing and nowdrinking,when you are drinking juice, orange juice was no skin, no wire, seedless, no residue, taste good., it is made of stainless steel.
1.The surface of the machine is made by stainless steel,cover is transparent PC.The plastic pressing ball is food safe,no harm to health.
2.Fast squeeze effect,to produce each cup of juice only take a few seconds.
3.With automatic juice and residue separate function automatic feeding function.
4.The pressing ball and cover are easy to detach for cleaning.
5.Design is compact and body is small,very suitable for using hotel,restaurant,buffet and other entertainment place.
6.The machine have got CE,CB,ETL ,quality is reliable.
1.Power supply:220--230V 50HZ /110--120V 60HZ
2. Power consumption : 120W / 250w
3. Size of orange required : 40--90mm
4. Output : 22-25 oranges/per minute
5. Machine Size : 545L*435W*1620H mm (length*width*height)
6. Net Weight : 85 kg
7 ． Security : Safety cut out switches
The machines will stop operating without the cover place.
8. ConVeyance:Qty/20' FCL: 27sets
||20FT: 10days; 40HQ: 15days
||CE approval available
|20' FT loading
Two protruding balls ,blade compages ,concave squeezer ,peelers ,peeler seats ,plastic veils ,pressing
screw , two concave balls .
1.Wrench screws of the front cover and take off the cover .
2.Take off the holder of the peel razor
3.Wrench screws on the ball.Hold the machine with both hands,and use two fingers to take off the plastic
balls .Do not use one hand only because this may cause injury.Since the spinning angels of axles are
different.sometimes you need to take off(or put on)the two corresponding top and bottom
ball at the same time .
4.take off the center of the valve of the juicer tank.
5.Take off the mesh filter
6.Clean the all parts mentioned in the instruction book .
7.Clean the garbage can in times .
