New Multifunction Intelligent Commercial High Quality Juicer Blender Machine

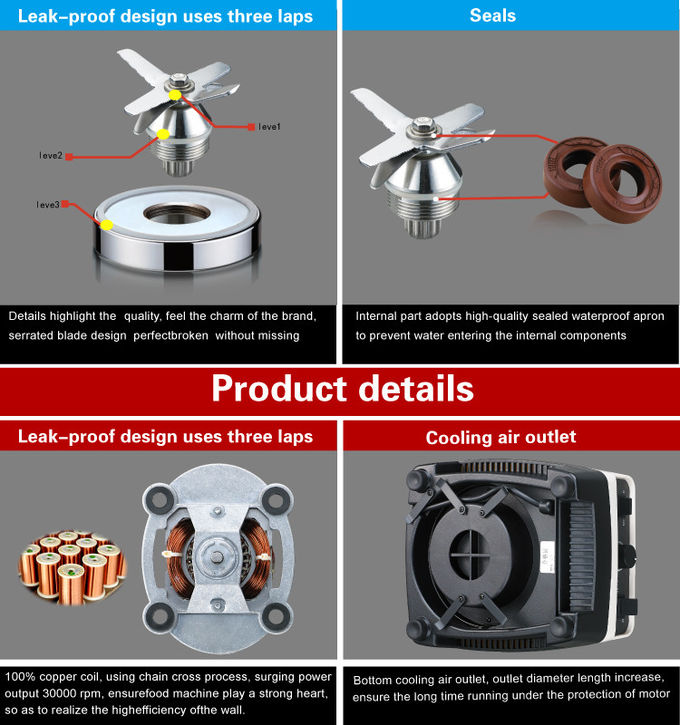

1)Knife casing, bearing and water-proof rubber ring are set with assembling gap due to the precise design
for the sensation expand with heat and contract with cold.
2)Special process is adopted to connect two blades, being simple and stable and reducing the seams
where dirty things may hide.
3)1.5mm thick 310 stainless steel blade is made by overall stamping,.
4)External water-proof rubber ring---preventing food powder and water from entering the knife and
breeding bacteria in knife and chopping board, causing the blocking of bearing.
5)Internal water-proof rubber ring---wearing and high temperature resistant aircraft materials are used,
the price of which is 10 times cheaper than that of common one and working life is 2times longer.
6) Bearing---it completely adopts Japanese imported NSK bearing, the working life of which is 5 times
longer than that of the common ones.
7) Driver and transmission gear: 1.304 stainless steel powder metallurgy materials which are not easy to
break (nylon plastic embedded aluminum pattern key can be seen on the market for most time but it is
easily worn and broken and parts need changing frequently) 2. It is cast overall, with stable dimension and
higher precision. 3. Transmission gear and motor axis are connected by thread which will not fall with less
vibration and lower noise!
8) Knife and chopping board is fixed by large hexagon nut casted by stainless steel. Only one common
wrench is used to demount or install it.
The operation for different food processes varies and can be categorized into three as the following :
A. DRY PREPARATION (For dried herbs, coffee bean, nuts, grains, rock sugar, etc)
B. WET PREPARATION (For fruits, vegetables, etc.)
C. ICE BLENDED DRINKS / ICE CUBE CRUSH (for coffee, cocoa, almond powder, etc.)
Ensure that the power switch is at ''OFF'' position.
Place the ice cubes in the jar, pour in the jar some liquid, should it be water, milk, honey, syrup, etc.
Put in some coffee, cocoa, almond powder, juice or others as you like into the jar.
Mount the jar onto the main base motor by fixing the male end underneath the jar into the female end on
the platform of the base. Make sure that the four protruding rubber ends are fitted securely to the base of
Cover the jar with the silicon rubber cap & insert the mixing pole through the hole in the cap.
Pull the ''PULSE'' level upward for top speed grinding and hole for 3 to 5 seconds. Repeat this step until
all ice cubes are crushed.
Turn the speed adjuster at any location to ''MIN'' position, switch the power on by switching the level
upward to ''ON'' position until the crushing noise is consistent. The speed may be increased for finer
particles. Stir the jar content with mixing pole if it is in consistent.
Press downward the power switch to ''OFF'' position when the satisfactory particle size is obtained.
For ice cube crush - just place the ice cubes into the jar with a little water (Procedure for using the blender
please follow as above)
