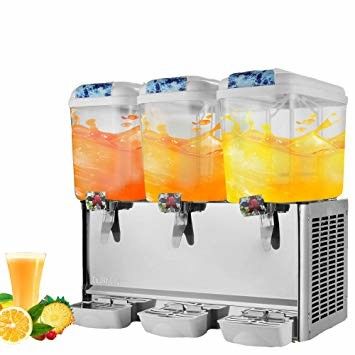

Commercial Cold Drinks Making Machine / Cold Juice Dispenser / Beverage Maker

Commercial Cold Drinks Making Machine / Cold Juice Dispenser / Beverage Maker

    • Commercial Cold Drinks Making Machine / Cold Juice Dispenser / Beverage Maker
    • Commercial Cold Drinks Making Machine / Cold Juice Dispenser / Beverage Maker
    • Commercial Cold Drinks Making Machine / Cold Juice Dispenser / Beverage Maker
    • Commercial Cold Drinks Making Machine / Cold Juice Dispenser / Beverage Maker
    • Commercial Cold Drinks Making Machine / Cold Juice Dispenser / Beverage Maker
    • Commercial Cold Drinks Making Machine / Cold Juice Dispenser / Beverage Maker
  • Commercial Cold Drinks Making Machine / Cold Juice Dispenser / Beverage Maker

    Product Details:

    Place of Origin: China
    Brand Name: kingmax
    Certification: LRSJ-20L×1
    Model Number: CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 10PCS
    Price: Negotiate
    Packaging Details: Inner carton box ,outer wooden box
    Delivery Time: 15 days after receiving payment
    Payment Terms: TT,L/C, WEST UNION ,PAYPAL
    Supply Ability: 2000PCS ONE MONTH
    Contact Now
    Detailed Product Description
    Tank Material: Food-grade PC Body Material: 304 Stainless Steel
    Votage: 220-240V/110-115V Cold-beverage Temperture: 7C-12C
    Shape Size: 360×380×690 Mm Gross Weight: 29 Kg

    Commercial Cold Drinks Making Machine / Cold Juice Dispenser / Beverage Maker

    Description:

    The Juice Beverage Dispensing Machine can dispense fruit punch, lemonade, iced tea, and fruit juice containing particulates.
    It is suitable for convenience store, hotels, restaurant chains, commercial streets, schools and other places with greater demands. In the heat of summer, can be make ice milk, ice cold beer, sherbet, plum juice, soybean milk, soda, coffee and other soft drinks.
    Three 4.75 gallon bowls, with easy to read measuring marks, are separate to allow bowl cleaning and flavor changes without "total system shut-down". Classic bubbler style dispenser with magnetic drive agitators, can be set for efficient agitation, stainless steel dispensing valves.
    Equipped with magnetizing jet pump, may magnetize beverages, helpful for your health, it sprays beverage like a fountain during operation, and cooling effect lasts for a long time.
    Unique stainless steel evaporator and high efficiency pump cools faster and more efficiently for faster start-ups.
    Feature
    Classic bubbler style, vertical spray dispenser with magnetic driven agitators.
    The piston discharging valve, larger particles are not easy to jam.
    Superior engineering allows full beverage cooling right down to the last drink.
    Stainless steel, dripless pouring valves are sanitary and easy to use and maintain.
    Better design and more stainless steel allow easier cleaning and less maintenance.
    Humanized handle, easy to use, comfortable and convenient.

    Application:

    Bar use ,restaurant,store , supermarket

    Specification:

    Voltage 220-240V/110-115V
    Frequency 50/60/HZ
    Cold power 320W
    Heat power 1500W
    Cold-beverage temperture 7C-12C
    Hot-beverage temprture 52C-58C
    Shape size 710×440×720
    Carton Packing 750×480×750
    Weight 40 kg
    Gross weight 42 kg
    Material Stainless steel R304 Machine size 700*430*740MM
    power 380/1500W Packing size 750*470*750MM
    Cold-beverage temperture 7 to 12 degree Hot-beverage temperature 52 to 58 degree
    Tank material PC Model LSJ18 LX3
    Condenser with Copper tube Certificate CE
    switch LCD switch Packing Way Carton +foam inside
    Electrics Standard 110V-220V,50-60HZ Drive Mode Magnetic rotating
    G.W 40KG N.W 37KG
    40' HQ loading 261PCS FOB Shanghai USD
    20' FT loading 105PCS Warranty 1 Year

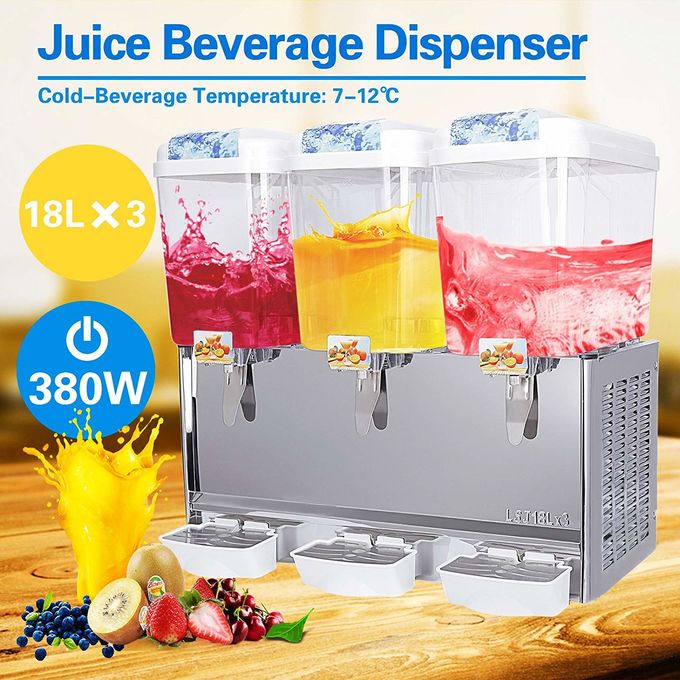

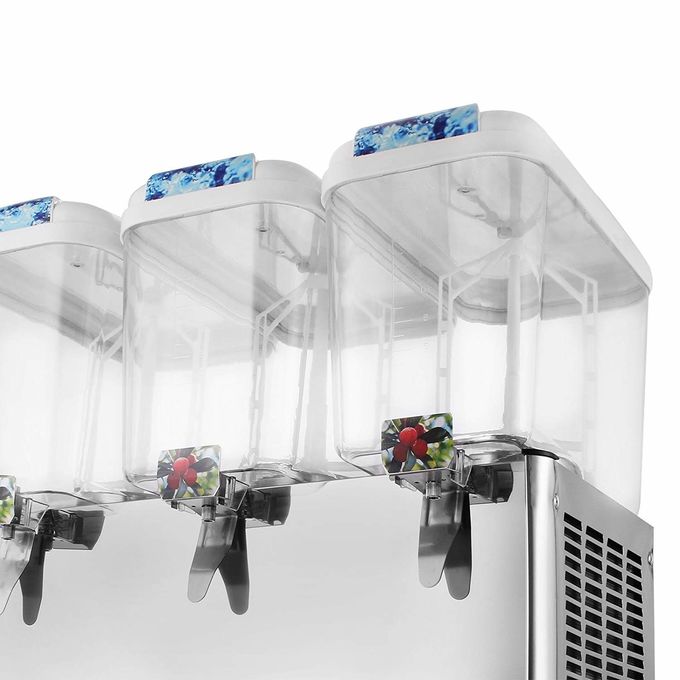

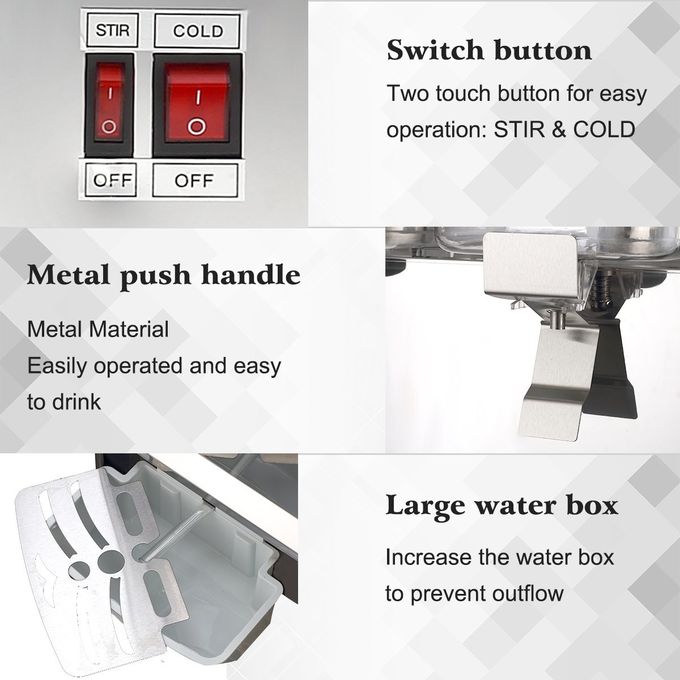

    Detailed Photo:

    Commercial Cold Drinks Making Machine / Cold Juice Dispenser / Beverage Maker

    Commercial Cold Drinks Making Machine / Cold Juice Dispenser / Beverage Maker

    Commercial Cold Drinks Making Machine / Cold Juice Dispenser / Beverage Maker

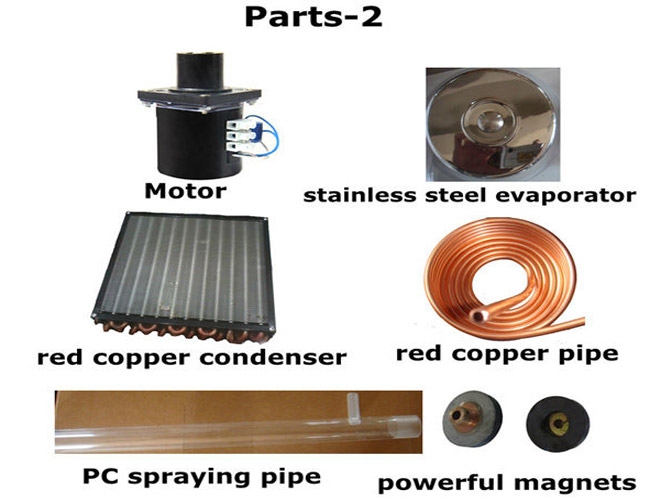

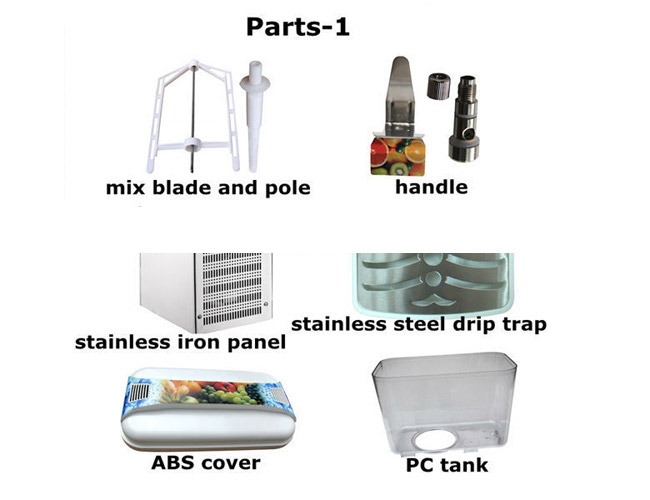

     Spare parts:



    Commercial Cold Drinks Making Machine / Cold Juice Dispenser / Beverage Maker



    Commercial Cold Drinks Making Machine / Cold Juice Dispenser / Beverage Maker

    How to use the cold beverage machine
    1.To fall prepared beverage into the crock , the height of it is should not exceed the standard height (9L-12L-18L-20L-50L), otherwise the beverage will flow into the churn-dasher from the dasher tube,which will make the dasher burn .
    2.The temperature of the beverage should not too high (not exceed 35), otherwise it will make bad effection for the refrigeration .
    3.Plug in the supply power to the 3 hole socket , the grounding hold should connect with the protecable wire or fixture to ensure the safety .
    4.To turn the switch on the position of refrigeration , press down the refrigeration switch , the compressor fan starts running and refrigeration system starts working .
    Then start the dasher to mix or start the spewing swtich to spew.
    5.When the beverage becomes to the suitable temperature , please make the cup against the push board lightly .the beverage will flow into the cuo from the outlet mouth .
    6.when the temperture reduces to the certain degree , the refrigeration will stop running because of the influence from the temperature
    cotroller .And when it increases, it will start automatically again .
    7.It should re-start after 5 minuters if it turn off suddenly or stop temporarily .otherwise it will damage the compressor .


     For how to install the machine please check the PDF file :

    Cold drink dispenser installing methods and notices.pdf
