Stainless Steel Fruit Juice Dispenser

Product Details

Place of Origin: China

Brand Name: kingmax

Certification: CE

Model Number: LRSDP-18LX2

Payment & Shipping Terms

Minimum Order Quantity: 10 PCS

Price: Negotiate

Packaging Details: Inner carton box ,outer wooden box

Delivery Time: 15 days after receiving payment

Payment Terms: TT,L/C, WEST UNION ,PAYPAL

Supply Ability: 2000PCS ONE MONTH

Get Best Price
Contact Now
Specifications
High Light:

juice dispenser machine

,

drinks dispenser machine

Capacity:
36 Liter
Working Mode:
Mix (stirring)
Tank Material:
Food Grade PC
Processing Types:
Any Of Liquid Drinks
Function:
Cooling,heating,mixing,spraying
Temperature:
7-12°C & 52-58°C
Capacity:
36 Liter
Working Mode:
Mix (stirring)
Tank Material:
Food Grade PC
Processing Types:
Any Of Liquid Drinks
Function:
Cooling,heating,mixing,spraying
Temperature:
7-12°C & 52-58°C
Description

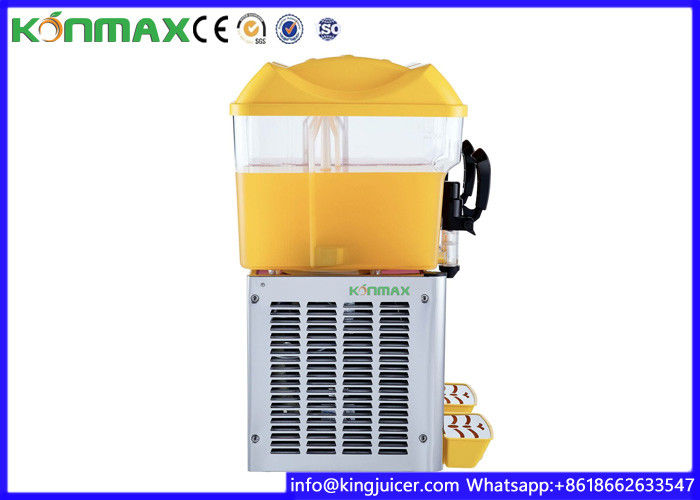

Stainless Steel Fruit Juice Dispenser

Commercial Stainless Steel Fruit Juice Dispenser 18 Liter With Imported Compressor

Description:

The Juice Beverage Dispensing Machine can dispense fruit punch, lemonade, iced tea, and fruit juice containing particulates.
It is suitable for convenience store, hotels, restaurant chains, commercial streets, schools and other places with greater demands. In the heat of summer, can be make ice milk, ice cold beer, sherbet, plum juice, soybean milk, soda, coffee and other soft drinks.
Three 4.75 gallon bowls, with easy to read measuring marks, are separate to allow bowl cleaning and flavor changes without "total system shut-down". Classic bubbler style dispenser with magnetic drive agitators, can be set for efficient agitation, stainless steel dispensing valves.
Equipped with magnetizing jet pump, may magnetize beverages, helpful for your health, it sprays beverage like a fountain during operation, and cooling effect lasts for a long time.
Unique stainless steel evaporator and high efficiency pump cools faster and more efficiently for faster start-ups.

Application:
Hotel ,restaurant,store , supermarket,drink bar etc

Specification:

Model

LRSPD-18L×2

Voltage

220-240V/110-115V

Frequency

50/60/HZ

Cold poqer

320W

Heat poqer

1500W

Cold-beverage temperture

7C-12C

Hot-beverage temprture

52C-58C

Shape size

510×470×740

Carton Packing

530×490×760

Weight

40 kg

Gross weight

42 kg

Feature

Classic bubbler style, vertical spray dispenser with magnetic driven agitators.

The piston discharging valve, larger particles are not easy to jam.

Superior engineering allows full beverage cooling right down to the last drink.

Stainless steel, dripless pouring valves are sanitary and easy to use and maintain.

Better design and more stainless steel allow easier cleaning and less maintenance.

Humanized handle, easy to use, comfortable and convenient



Detailed Pictures:

Stainless Steel Fruit Juice Dispenser 0

Food grade plastic bowl and capacity is 18 liter for each tank

Stainless Steel Fruit Juice Dispenser 1

Elegant shape design and suitable for different beverages

Stainless Steel Fruit Juice Dispenser 2

Large water drip tray to make machine clean


How to use the cold beverage machine?
1.To fall prepared beverage into the crock , the height of it is should not exceed the standard height (9L-12L-18L-20L-50L), otherwise the beverage will flow into the churn-dasher from the dasher tube,which will make the dasher burn .
2.The temperature of the beverage should not too high (not exceed 35), otherwise it will make bad effection for the refrigeration .
3.Plug in the supply power to the 3 hole socket , the grounding hold should connect with the protecable wire or fixture to ensure the safety .
4.To turn the switch on the position of refrigeration , press down the refrigeration switch , the compressor fan starts running and refrigeration system starts working .
Then start the dasher to mix or start the spewing swtich to spew.
5.When the beverage becomes to the suitable temperature , please make the cup against the push board lightly .the beverage will flow into the cuo from the outlet mouth .
6.when the temperture reduces to the certain degree , the refrigeration will stop running because of the influence from the temperature cotroller .And when it increases, it will start automatically again .
7.It should re-start after 5 minuters if it turn off suddenly or stop temporarily .otherwise it will damage the compressor .
